Products / 01–02
Meet therange. Real packaging, clear specifications and every available product view—up front, where it belongs.
01 Mangaldeep02 Metfil
Open gallery · 1/5 Flagship · Industrial grade
Mangaldeep A medium-coated rutile electrode engineered for a steady arc, clean bead profile and dependable joints across fabrication work.
Classification AWS E6013 · IS ER 4041
Standard IS 814:2004
Positions All positions
Polarity AC · DC (±)
Coating Medium-coated rutile
BIS licence CML-8700174017 Performance details
01 All-position general-purpose mild-steel electrode
02 Stable arc and smooth bead profile
03 Suitable for fabrication, engineering and shipbuilding work
Electrode size / recommended current
Size Current
2.50 × 350 mm 70–90 A
3.15 × 350 mm 90–140 A
3.15 × 450 mm 90–130 A
4.00 × 450 mm 140–180 A
5.00 × 450 mm 140–230 A
Request pricing ↗ Technical specifications

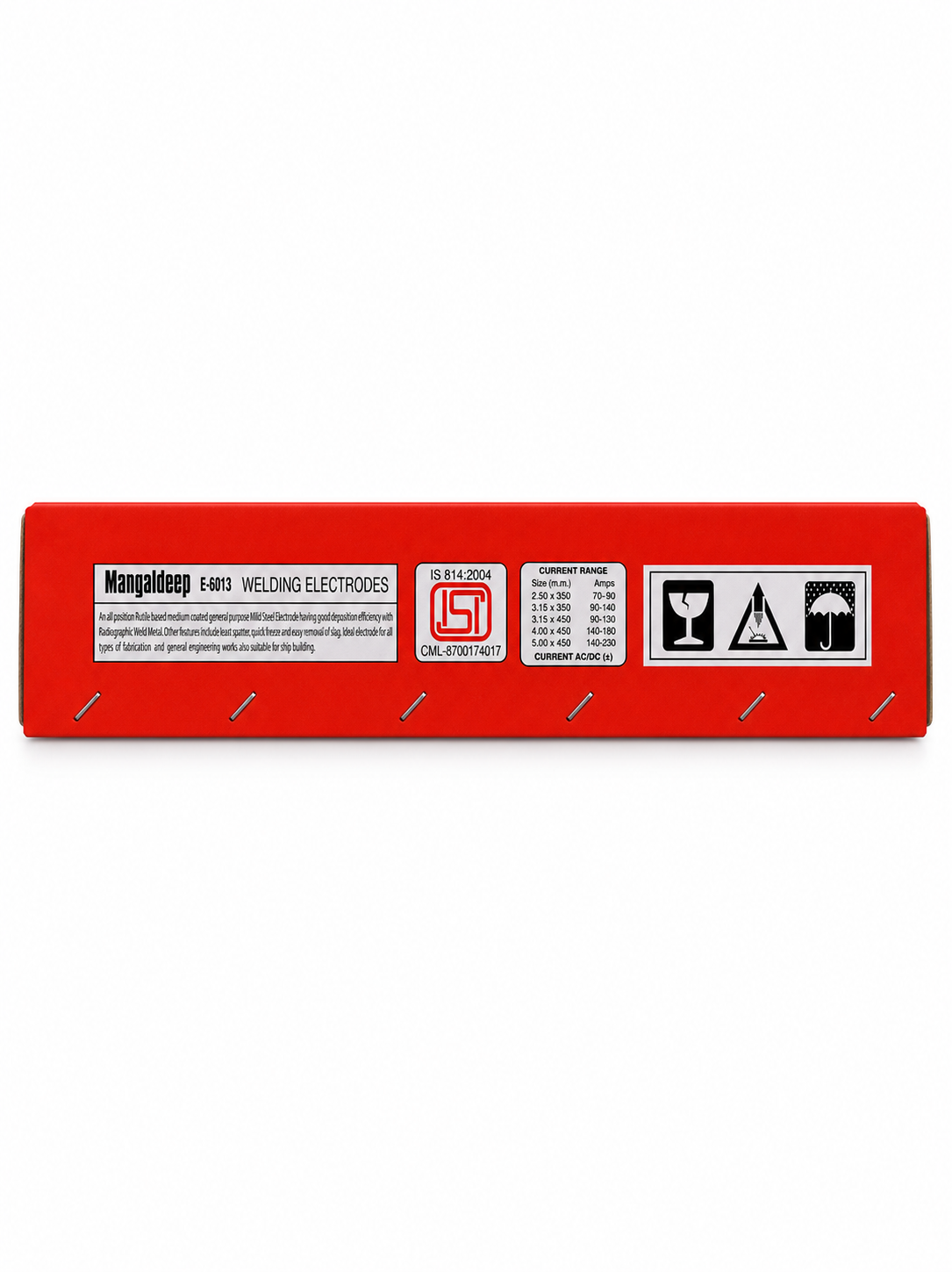

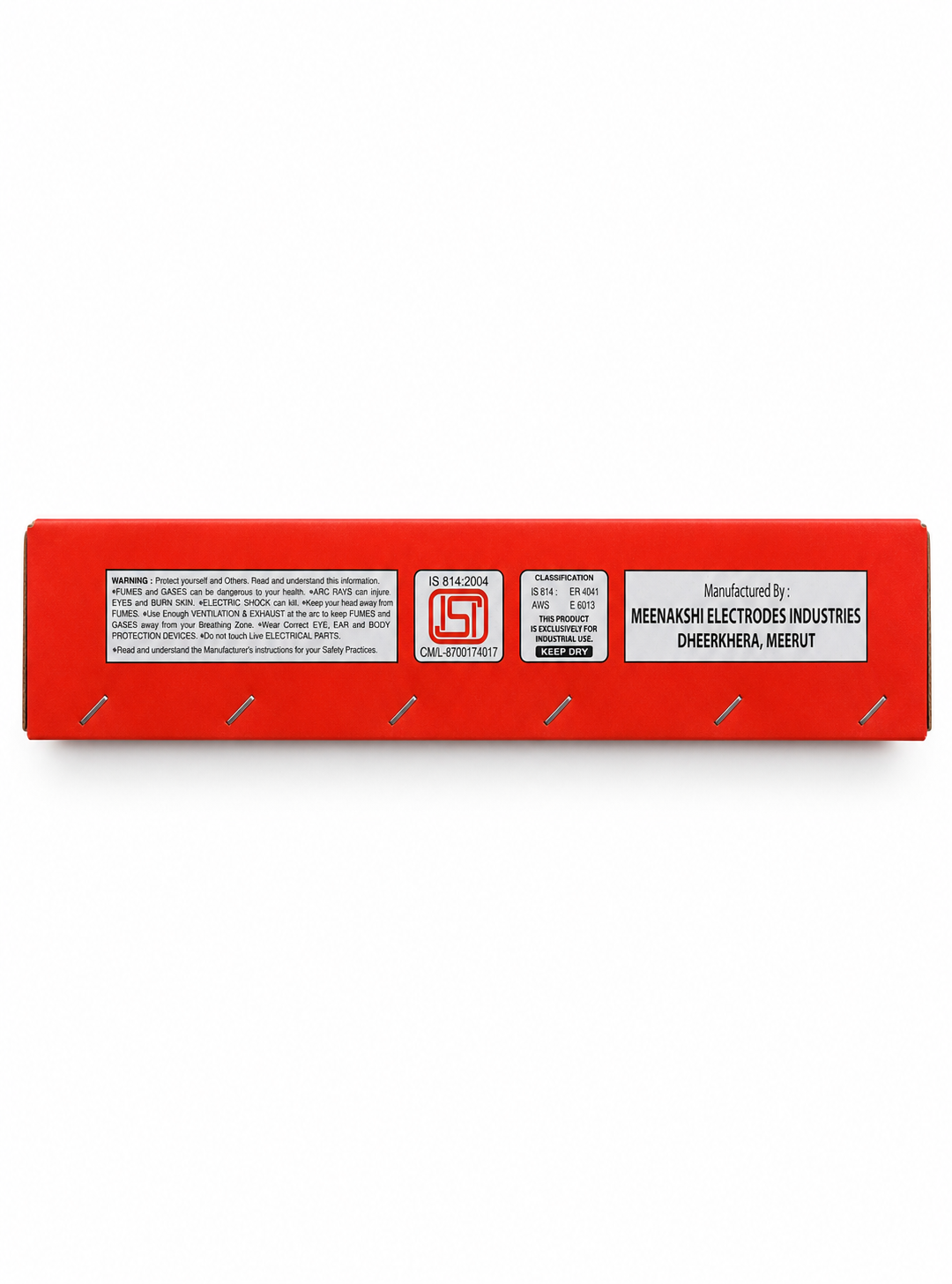

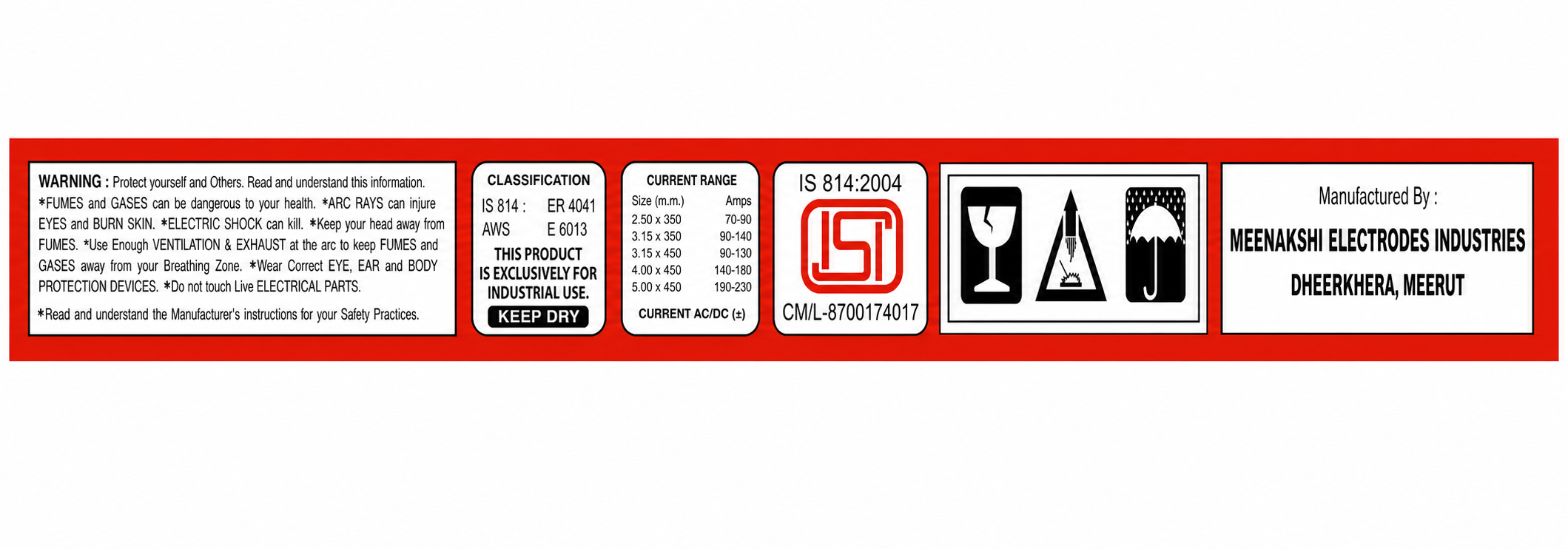

Classified. Information transcribed from the current product packaging. Final selection should follow your base material, machine, position and approved welding procedure.
Flagship · Industrial grade
Mangaldeep
Classification AWS E6013 · IS ER 4041
Standard IS 814:2004
Positions All positions
Polarity AC · DC (±)
Coating Medium-coated rutile
BIS licence CML-8700174017 01 All-position general-purpose mild-steel electrode
02 Stable arc and smooth bead profile
03 Suitable for fabrication, engineering and shipbuilding work
Electrode size Recommended current
2.50 × 350 mm 70–90 A
3.15 × 350 mm 90–140 A
3.15 × 450 mm 90–130 A
4.00 × 450 mm 140–180 A
5.00 × 450 mm 140–230 A
General purpose · E6013
Metfil
Classification AWS E6013 · IS ER 4041
DIN coding E TI VIIM
Standard IS 814:2004
Positions All positions · vertical-down · overhead
Polarity AC · DC (+)
BIS licence CML-8700174017 01 Medium-coated rutile electrode for mild steel
02 Low spatter with easy slag removal
03 Suitable for all positions on AC and DC (+)
Electrode size Recommended current
2.50 × 350 mm 60–90 A
3.15 × 350 mm 100–130 A
3.15 × 450 mm 100–120 A
4.00 × 450 mm 160–180 A
5.00 × 450 mm 180–240 A
